Materiales metálicos absorbentes Hierro silicio aluminio escamoso FeSiAl Polvo

Carácter del producto Our flaky FeSiAl powder can be mixed with various polymer materials to form raw materials, and then various electromagnetic wave absorbing components can be prepared through processes, such as rolling, pressing, injection, and extrusion. It is widely used in mobile phones, laptops, digital cameras, and other materials in electronic terminal devices such as wire routers.   1.Specification Flaky Iron Silicon Aluminum FeSiAl Powder

Chemical Composition
Elemento	Value（%）	Elemento	Value（%）	Elemento	Value（%）
Si	9.4- 10.0	Al	5.5-6. 1	Fe	Bal



Grade	D50 (um)	Apparent Density （g/cm3）	Permeability* ur’@3MHz	MOQ
ZJC9-A	20-30	0.25-0.45	≥100	15kg/drum
ZJC- 115	40-50	0.5-0.65	≥100	20kg/drum
ZJC- 150	45-55	0.4-0.55	≥150	20kg/drum
ZJC-200	50-65	0.3-0.45	≥200	15kg/drum
ZJC-240	60-75	0.3-0.45	≥240	15kg/drum
ZJC-260	70-85	0.3-0.45	≥260	15kg/drum

  2.Pictures of Powder SEM morphology   3. Product Description The flaky FeSiAl magnetic powder product produced by us is a soft magnetic alloy electromagnetic wave absorption powder. The mainly characteristics are as follows:

1. La morfología es plana y escamosa, con bordes lisos;
2. La permeabilidad magnética ur es alta, y la permeabilidad magnética máxima ur de las láminas magnéticas puede alcanzar más del 200；.
3. The loose  density A.D are relatively large, making it easy for molding and processing, which is also beneficial for improving the density of finished products；
4. La intensidad de inducción magnética de saturación Bs alcanza 1,1T.

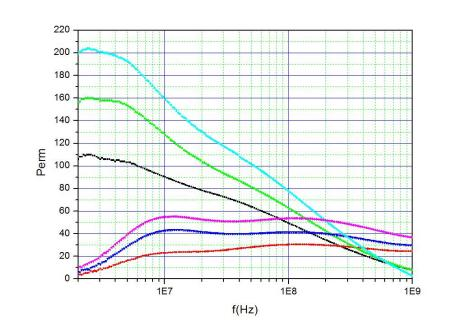

Our flaky FeSiAl powder can be mixed with various polymer materials to form raw materials, and then various electromagnetic wave absorbing components can be prepared through processes, such as rolling, pressing, injection, and extrusion. It is widely used in mobile phones, laptops, digital cameras, and other materials in electronic terminal devices such as wire routers. The technical standards for magnetic powder are Apparent Density and D50, the result is based on the testing report.   Typical value of being pressed into magnetic sheets after casting.   4.Aplicación It is widely used in mobile phones, laptops, digital cameras, and other materials in electronic terminal devices such as wire routers.
